Welded Wire Mesh

  • Hot Dipped Galvanized Welded Wire Mesh
  • Hot Dipped Galvanized Welded Wire Mesh
  • Hot Dipped Galvanized Welded Wire Mesh
  • Hot Dipped Galvanized Welded Wire Mesh
  • Hot Dipped Galvanized Welded Wire Mesh
  • Hot Dipped Galvanized Welded Wire Mesh
Hot Dipped Galvanized Welded Wire MeshHot Dipped Galvanized Welded Wire MeshHot Dipped Galvanized Welded Wire MeshHot Dipped Galvanized Welded Wire MeshHot Dipped Galvanized Welded Wire MeshHot Dipped Galvanized Welded Wire Mesh

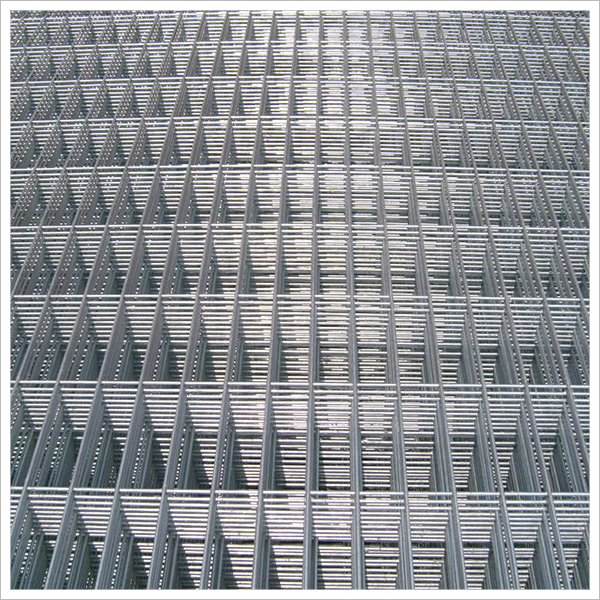

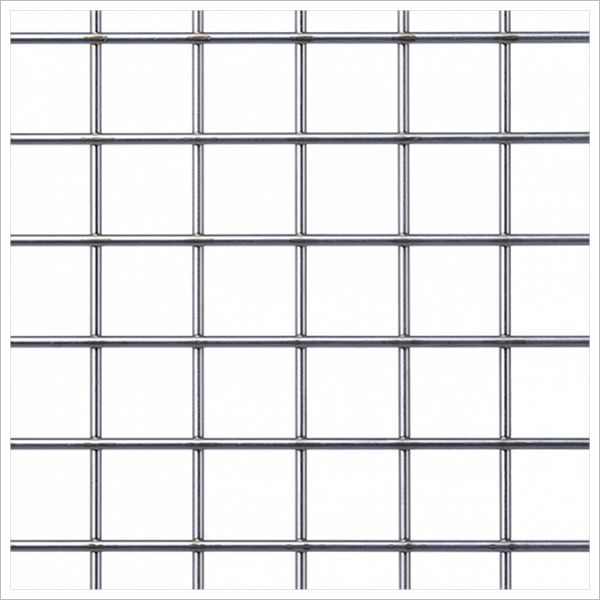

Hot Dipped Galvanized Welded Wire Mesh

  • Wire Gauge:0.4-4mm
  • Aperture:1/4
  • customise acceptable
  • free sample
  • Product description: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance extensively used as fencing, decoration and machinery protection material in construction, sports field, agriculture, mine
  • INQUIRY

1.Material:Low carbon steel wire;galvanized wire;hot dipped galvanized wire.Zinc coated 40-200g/m2

2.Feature: Corrosion resistance, aging resistance, sunshine resistance and weather resistance.

3.Application: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance extensively used as fencing, decoration and machinery protection material in construction, sports field, agriculture, mine, transport, lawn and various industrial fields.

Specification List of Hot Dipped Galvanized Welded Wire Mesh
Opening Wire diameter
Inch mm BWG
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8”x3/8” 9.5mm x 9.5mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request
